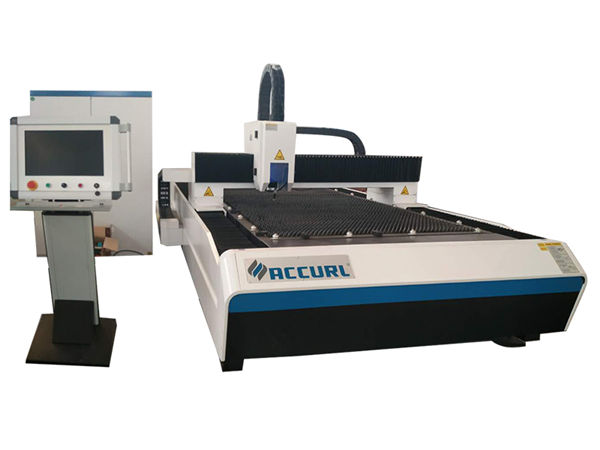

2000w / 3000w metalo pluošto lazeriu pjaustymo mašina ac380v cypcut valdymo sistema

2000w / 3000w metalo pluošto lazeriu pjaustymo mašina ac380v cypcut valdymo sistema

Produkto Aprašymas

Certification: CE, FDA, IOS9001
Apmokėjimo ir pristatymo sąlygos:
Minimalus užsakymo kiekis: 1 komplektas
Price: USD
Packaging Details: Standard Wood Packing
Delivery Time: 30-45 Days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability: 100 Sets Per Month

Išsamus produkto aprašymas

Modelis:RL-3015-2000Lazerio galia:2000W
Lazerio šaltinis:Max/Raycus/IpgMaximum Processing Size:3000 * 1500mm
Maximum Operating Speed:800mm/sValdymo sistema:Kiškis
Material Cutting Thickness:0.2-30mmElectric Power Supply:AC380V 50Hz/5KW
Padėties tikslumas:± 0,05 mm / 500 mmHS Code:8456110090
Transporto paketas:Wooden CartonSvoris:1100KG
Repeat Position Accuracy:± 0,05 mm / 500 mmLazerio tipas:Pluošto lazeris

Prekės aprašymas

Fiber Laser Cutting Machine is used for cutting steel, aluminum, titanium, copper and other metal materials with higher laser cutting quality, speed, precision and efficiency. Now the fiber laser cutter for sale with affordable price and free fiber laser cutting system service from China professional CNC laser manufacturer.

Features of 2000W Fiber Metal Laser Cutting Machine

Stability and reliability of light path system and control system.Stable running: adopt top world import Fiber lasers, stable performance, key parts can reach 100,000 hours.
Very low cost, every hour only consumed 0.5W to 1.5W electricity, cutting all kinds of sheet metal by air.
Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge.
Imported servo motor and gearing system to guarantee precise cutting.
German high performance reducer,gear and rack;Japanese guide and ball screw.
Dedicated software enables graphic or text to instantly designed or processed. Flexible and easy operation.

Techniniai parametrai

Lazerio galia2000W/3000/4000W/6000W
Lazerinis šaltinisMAX/Raycus/IPG
Lazerio tipasPluošto lazeris
Lazerio bangos ilgis1064nm
Laser Beam Quality<0,373mrad
Darbo stalasSawtooth
Pluošto lazerio pjovimo galvutėRaytool
Fokusavimo objektyvasRaytool
Motor&DriversYaskawa servo variklis pagamintas Japonijoje
ReduktoriusFrance motovario
Vadovo bėgiaiHigh accuracy from Germany
Perdavimo sistemaDvigubo stovo ir krumpliaračio tipas
Stelažų sistemaAtlanta rack made in Germany
Valdymo sistemaProfessional laser control system-Cycut
Pagalbinės dujos pjaustymuiOxygen.Nitrogen
Suderinama programinė įrangaAutocad.Coreldraw.etc
Mašinos svoris8000KG
Warranty timeWhole machine for 3 years
PastabaAutomatic exchange worktable , cover(option)

Programos

Applicable materials: thin sheet metal, a variety of high quality 0.5 -3mm carbon steel sheet cutting, stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal materials.

Applicable industries: Kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and other metal processing.
