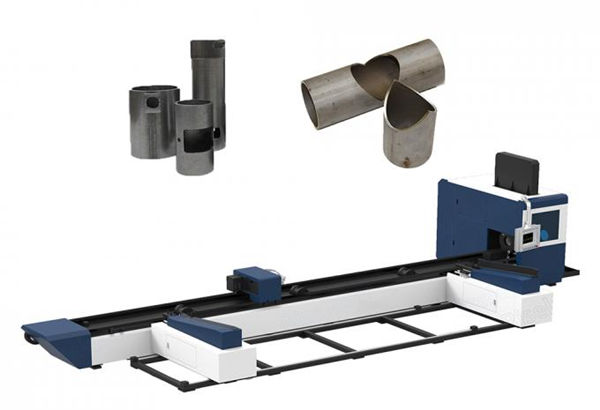

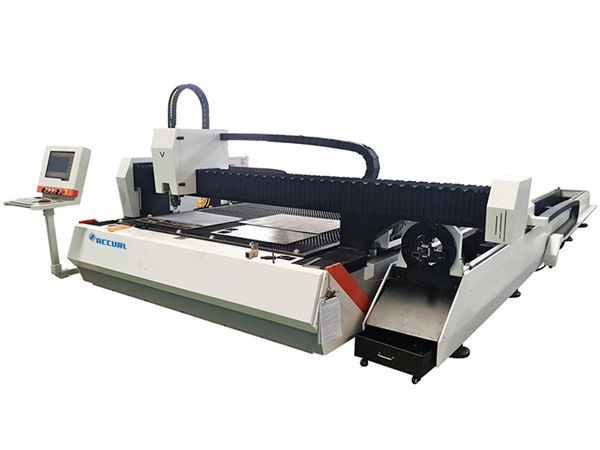

1000w tube metal fiber laser cutting machine adjustable speed

Produkto Aprašymas

Certification: CE，FDA，ISO9001
Apmokėjimo ir pristatymo sąlygos:
Minimalus užsakymo kiekis: 1 SET
Price: USD
Packaging Details: Wooden Box
Delivery Time: 30-40 Days
Payment Terms: D/A, D/P, L/C, Western Union, T/T, MoneyGram
Supply Ability: 100 SETS PER MONTH

Išsamus produkto aprašymas

Būklė:	Nauja	Guide Rails:	Taiwan Hi-Win Square Guide
Fiber Laser Cutting Head:	USA Lasermech	Pjovimo greitis:	Reguliuojamas
Floor Space:	5.6m X 3.2m	Lazerio tipas:	Max, Raycus, IPG
Valdymo sistema:	Professional Laser Control System--Cypcut	HS Code:	8456110090

Our Core Advantages

1. Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
2. Sold 4500 units of laser machines in China market in 2017, with reasonable price.
3. Fiber Laser cutting machine, (700W, 1000W, 1500W+ laser cutter), usually sell 30 units/month in China.

How Laser Cutting Works

Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish. Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.

Fiber Laser Cutting Advantages

1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

Specifikacijos

Medium of laser	Semiconductor pump continuous ytterbium doped fiber
Lazerio bangos ilgis	1070 nm
Lazerio išėjimo galia	500W	1000W
Cutting area(mm)(L×W)	3000 mm × 1500 mm
Max cutting speed(m/min)	18 m/min	24 m/min
Min. Linijos plotis	< 0.1mm	< 0.125mm
Cutting depth	0.2mm---5mm	0.2mm---8mm
Driving Way	Importuotas servovariklis
Tranmission Way	Y-axis imported gear rack double driver,X-axis imported gear rack
Operational Temp Range	10 ~ 40ºC
Electrical Requirements	380V/50Hz.60Amp
Aušinimo režimas	Water cooled
Nepertraukiamas darbo laikas	24 hours
Garantija:	2 years on laser source
Svoris	About 3000kg
Outline size(mm)	4270mm×2420mm×1750mm (L×W×H)

Taikomos medžiagos

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

Taikoma pramonė

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

Fiber laser cutting samples

After-sale service

1.Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype, whatsapp, etc for fast solution. We can offer technician go to customer's site for oversea service, customer shall cover visa, ticket, local living cost.
2. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance. During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.
